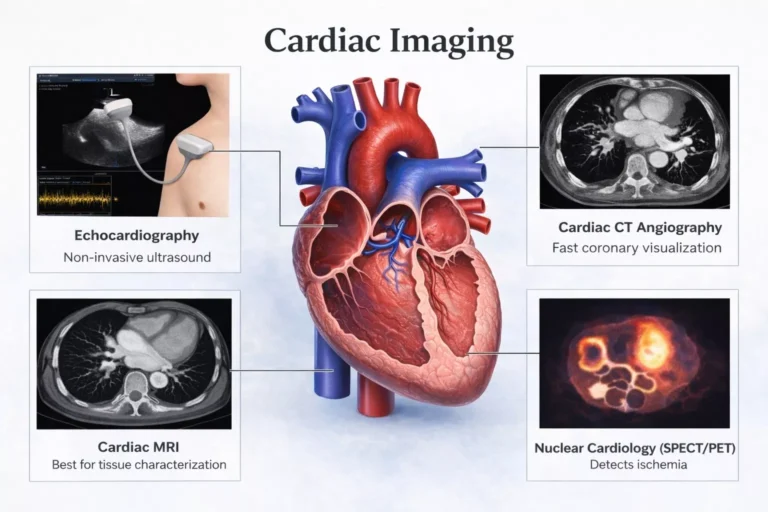

Cardiac Imaging

1. What is cardiac imaging?

• Cardiac imaging refers to a set of medical techniques and procedures used to visualize and assess the structure and function of the heart and blood vessels. These imaging methods provide valuable information for diagnosing and monitoring various heart conditions, evaluating the overall cardiovascular health of patients, and guiding treatment decisions. Cardiac imaging encompasses a range of technologies and modalities, including:

1. Echocardiography (Echo)
2. Electrocardiogram (ECG or EKG)
3. Treadmill Test (Exercise Stress Test)
4. Cardiac Computed Tomography (CT) Scan
5. Cardiac Magnetic Resonance Imaging (MRI)
6. Nuclear Medicine Imaging (Myocardial Perfusion Imaging)
7. Cardiac Catheterization
8. Positron Emission Tomography (PET) Scan
9. Transoesophageal Echocardiography (TEE)

• Cardiac imaging plays a vital role in the diagnosis, treatment planning, and ongoing monitoring of heart conditions. The choice of imaging modality depends on the specific clinical questions, the patient’s disease, and the information the healthcare provider needs. Each modality has its strengths and limitations, and healthcare providers will select the most appropriate imaging technique based on individual patient needs and clinical circumstances.

2. When is cardiac imaging performed?

• Cardiac imaging is performed in various clinical scenarios to evaluate the structure and function of the heart, diagnose heart conditions, guide treatment decisions, and monitor patients’ cardiovascular health. Some everyday situations in which cardiac imaging may be performed include:

1. Diagnostic Evaluation:

   – Symptoms of Heart Disease: When individuals present with symptoms such as chest pain (angina), shortness of breath, palpitations, fatigue, or dizziness, cardiac imaging may be used to identify the underlying cause.

– Heart Murmurs: Cardiac imaging can help assess the severity and origin of heart murmurs, which may indicate heart valve disorders or congenital heart defects.

2. Screening and Risk Assessment:

   – Cardiovascular Risk Assessment: In some cases, healthcare providers may recommend cardiac imaging as part of a cardiovascular risk assessment, especially for individuals with risk factors like family history, smoking, high blood pressure, or diabetes.

   – Preventive Screening: In specific high-risk populations, screening tests like coronary calcium scoring (a type of CT scan) may be used to assess the risk of coronary artery disease.

3. Monitoring and Follow-Up:

   – Chronic Heart Conditions: Patients with chronic heart conditions such as heart failure, coronary artery disease, or heart valve disorders may undergo cardiac imaging to monitor disease progression, assess treatment effectiveness, and detect complications.

   – Postsurgical or Procedural Evaluation: After heart surgery or interventions (e.g., coronary stent placement or heart valve replacement), imaging may be performed to assess the outcomes and ensure the procedure’s success.

4. Assessment of Cardiac Function:

   – Ejection Fraction: Cardiac imaging, including echocardiography, cardiac MRI, or nuclear imaging, is used to measure ejection fraction, a key indicator of how well the heart pumps blood.

   – Myocardial Viability: Imaging techniques like cardiac MRI and PET scans can assess heart muscle viability following a heart attack.

5. Assessment of Coronary Arteries:

   – Coronary Artery Disease: Imaging modalities like cardiac CT angiography and nuclear medicine scans can visualize the coronary arteries to assess for the presence of coronary artery disease (atherosclerosis) and evaluate the degree of blockages.

6. Congenital Heart Defect Evaluation:

   – Pediatric and Adult Congenital Heart Disease: Cardiac imaging diagnoses and monitors congenital heart defects in children and adults. It helps evaluate the anatomy, blood flow, and function of the heart.

7. Arrhythmia Evaluation:

   – Arrhythmias: In abnormal heart rhythms (arrhythmias), electrophysiological studies and imaging techniques like cardiac MRI can help identify the underlying causes and guide treatment.

8. Pulmonary Hypertension Assessment:

   – Pulmonary Hypertension: Imaging can be used to assess the degree of pulmonary hypertension and its impact on the right side of the heart.

• The choice of cardiac imaging modality and timing will depend on the patient’s clinical presentation, specific medical indications, and the information needed to make informed decisions regarding diagnosis and treatment. Healthcare providers will consider the patient’s age, medical history, symptoms, and risk factors when determining when and which type of cardiac imaging to perform.

3. What is an echocardiogram?

• An echocardiogram, often called an “echo,” is a non-invasive and widely used medical test that uses high-frequency sound waves (ultrasound) to create real-time images of the heart’s structure, function, and blood flow. It is a valuable diagnostic tool for assessing the health of the heart and diagnosing various cardiac conditions. Echocardiography provides detailed information about the heart’s chambers, valves, and overall performance.

• Echocardiography is used for various purposes, including:

– Diagnosing and assessing heart conditions such as heart valve disorders, congenital heart defects, and cardiomyopathies.

– Evaluating the heart muscle function (ejection fraction) and detecting areas of decreased contractility.

– Identifying blood clots, masses, or tumours within the heart.

– Assessing the severity of heart valve abnormalities (e.g., stenosis or regurgitation).

– Monitoring the progression of heart disease and the response to treatment.

– Guiding specific procedures, such as cardiac catheterizations or heart valve surgeries.

• Echocardiograms are considered safe and painless tests with no known side effects. They are essential for cardiologists and healthcare providers in diagnosing and managing heart conditions and providing optimal patient care.

4. What is cardiac computed tomography?

• Cardiac computed tomography (CT), or cardiac CT or cardiac CT angiography (CCTA), is a specialized medical imaging technique that uses X-rays and computer technology to create detailed cross-sectional images of the heart, coronary arteries, and blood vessels. This imaging modality provides high-resolution, three-dimensional views of the heart and surrounding structures, making it a valuable tool for diagnosing and evaluating various cardiac conditions.
• Cardiac CT is considered a non-invasive imaging technique, meaning it does not require the insertion of catheters or instruments into the body. It provides detailed information about cardiac and vascular health, making it a valuable tool for cardiologists and other healthcare providers when diagnosing and planning treatment for various cardiac conditions.
• However, cardiac CT involves exposure to ionizing radiation and using iodinated contrast agents can carry risks, particularly for individuals with specific allergies or kidney function issues. Therefore, the decision to perform a cardiac CT is made carefully, considering each patient’s potential benefits and risks. The procedure is typically conducted in specialized cardiac imaging centres with trained professionals.

5. What is a nuclear cardiac stress test?

• A nuclear cardiac stress test, or myocardial perfusion imaging (MPI) or a nuclear stress test, is a diagnostic imaging procedure used to assess the blood flow to the heart muscle during rest and stress conditions. It provides valuable information about coronary artery disease (CAD), a condition characterized by the narrowing or blockage of the coronary arteries that supply blood to the heart muscle.
• The nuclear stress test provides several essential pieces of information:

– It can detect areas of the heart that are not receiving sufficient blood flow, which may indicate the presence of coronary artery disease.

– It can assess the heart’s overall function, including the ejection fraction (the percentage of blood pumped out with each heartbeat).

– It can help determine the severity and extent of coronary artery blockages.

– It can guide treatment decisions, such as the need for coronary angiography or revascularization procedures (e.g., angioplasty and stent placement or coronary artery bypass surgery).

• The radiation exposure from a nuclear stress test is generally considered low and safe for most patients. However, the test is not recommended for pregnant individuals, and it should be used with caution in certain patients, particularly those with known allergies to radioactive tracers or kidney problems.

6. What is a cardiac PET scan?

• A cardiac positron emission tomography (PET) scan, often referred to simply as a cardiac PET scan, is a specialized medical imaging test used to assess blood flow, metabolism, and heart muscle function. It provides detailed information about how well the heart is functioning and is particularly valuable in diagnosing and evaluating coronary artery disease (CAD) and assessing myocardial viability (the ability of heart tissue to recover after injury).
• Cardiac PET scans provide highly detailed and quantitative information about blood flow and metabolism in the heart, allowing healthcare providers to make precise diagnostic and treatment decisions. The amount of radiation exposure from a cardiac PET scan is typically considered low and safe for most patients.
• It’s important to note that cardiac PET scans are conducted in specialized healthcare facilities with trained professionals, and radiopharmaceuticals are carefully controlled to ensure safety and accuracy. Patients undergoing this test should discuss concerns or potential allergies with their healthcare provider.

7. What is a cardiac SPECT scan?

• A cardiac single-photon emission computed tomography (SPECT) scan, often called a cardiac SPECT scan or myocardial perfusion imaging (MPI), is a specialized nuclear medicine imaging test used to assess the blood flow and function of the heart muscle. It provides detailed information about how well the heart is functioning and is particularly valuable in diagnosing and evaluating coronary artery disease (CAD) and other cardiac conditions.
• Cardiac SPECT scans provide detailed and quantitative information about blood flow in the heart, allowing healthcare providers to make precise diagnostic and treatment decisions. The amount of radiation exposure from a cardiac SPECT scan is typically considered low and safe for most patients.
• Like other nuclear medicine tests, cardiac SPECT scans are conducted in specialized healthcare facilities with trained professionals, and radiopharmaceuticals are carefully controlled to ensure safety and accuracy. Patients undergoing this test should discuss any concerns or potential allergies with their healthcare provider.

8. What is a coronary angiogram?

• A coronary angiogram, or cardiac catheterization with coronary angiography, is a diagnostic procedure to visualize the coronary arteries, the blood vessels that supply oxygen and nutrients to the heart muscle. It is considered the gold standard for evaluating coronary artery disease (CAD) and is commonly performed to assess the presence and severity of blockages or narrowing in these arteries. The procedure provides detailed and real-time images of the coronary arteries and can help guide treatment decisions.
• A coronary angiogram provides essential information about the coronary arteries, such as the location, extent, and severity of any blockages. This information helps healthcare providers determine the most appropriate treatment plan, including lifestyle modifications, medications, or interventional procedures like angioplasty and stent placement. In some cases, if severe blockages are identified that cannot be treated with PCI, coronary artery bypass surgery (CABG) may be recommended.
• While coronary angiography is a valuable diagnostic tool, it is an invasive procedure and carries some risks, including bleeding, infection, and potential damage to the blood vessels. However, the benefits of accurate diagnosis and appropriate treatment for CAD often outweigh the risks, especially for individuals with significant heart-related symptoms or high-risk factors for CAD. Patients should discuss the procedure, risks, and potential benefits with their healthcare provider.

9. What is a cardiac MRI?

• Cardiac magnetic resonance imaging (MRI) is a non-invasive medical imaging technique used to assess the heart’s structure, function, and overall health. It provides detailed and high-resolution images of the heart and surrounding blood vessels, making it a valuable diagnostic tool for a wide range of cardiac conditions.
• How Cardiac MRI Works:

1. Magnetic Fields: Cardiac MRI utilizes powerful magnets and radio waves to create detailed heart images. When a patient is placed inside the MRI machine, the hydrogen atoms in the body’s tissues align themselves with the magnetic field generated by the machine.
2. Radio Waves: Short bursts of radio waves are directed at the body, causing the hydrogen atoms to briefly “flip” their alignment. When the radio waves are turned off, the hydrogen atoms release energy through radio signals.
3. Signal Reception: Sensitive detectors within the MRI machine detect these radio signals, which are then processed by a computer to create cross-sectional images (slices) of the heart and its structures.

• Cardiac MRI is considered a safe and non-invasive imaging technique. It is particularly valuable for cases where high-resolution imaging and detailed functional assessments of the heart are needed. However, it may not be suitable for individuals with certain medical implants or devices containing metal, as the magnetic field can interfere with them. Patients should discuss any concerns or contraindications with their healthcare provider before undergoing a cardiac MRI.

10. What is a MUGA scan?

• A MUGA scan, which stands for Multigated Acquisition scan, is a specialized nuclear medicine imaging test used to assess the function of the heart’s left ventricle—the heart’s main pumping chamber. This test is also known as a radionuclide ventriculography or gated blood pool imaging.
• During a MUGA scan, a small amount of a radioactive tracer, usually technetium-99m-labeled red blood cells, is injected into a vein in the arm. These radioactive red blood cells behave like normal blood cells and distribute throughout the bloodstream. The patient is positioned under a gamma camera equipped with detectors capable of detecting gamma rays emitted by the radioactive tracer. As the heart beats and the blood circulates, the gamma camera continuously captures images of the left ventricle from various angles over a specific time. These images create “gated” or sequential pictures of the heart’s pumping action.
• MUGA scans are generally considered safe, and the radiation exposure is typically low. The test provides valuable information for diagnosing and managing various cardiac conditions, particularly those affecting the heart’s pumping ability. The results of a MUGA scan can help guide treatment decisions and provide insights into a patient’s overall cardiac health.

11. How do I prepare for cardiovascular imaging?

• The preparation for cardiovascular imaging can vary depending on the specific imaging test. However, some general guidelines may apply to many cardiovascular imaging procedures. Always follow the instructions provided by your healthcare provider or the imaging facility. Here are some common preparations for cardiovascular imaging:

1. Discuss Your Medical History: Before the imaging test, inform your healthcare provider about your medical history, including any existing medical conditions, allergies, prior surgeries, and current medications. This information is crucial for ensuring your safety during the procedure.
2. Fasting Instructions: Some cardiovascular imaging tests, such as a cardiac MRI or CT angiogram, may require fasting before the test. Fasting typically involves refraining from food and drink for a specific period (usually several hours) before the test. Follow your healthcare provider’s instructions regarding fasting, as it can affect the quality of the images obtained.
3. Medication Guidelines: If taking any medications, ask your healthcare provider whether to continue taking them as usual before the imaging test. Sometimes, specific medications may need to be adjusted or temporarily discontinued before the test.
4. Allergies: Inform your healthcare provider or the imaging facility staff if you have any known allergies, especially to contrast agents or medications used during the procedure. Allergic reactions are rare but can occur.
5. Clothing and Personal Items: Wear comfortable clothing to the imaging appointment, and avoid clothing with metal elements, as metal can interfere with some imaging techniques. Depending on the test, you may be asked to change into a hospital gown. Leave valuables and jewellery at home or in a secure place.
6. Hydration: In some cases, you may be advised to drink extra fluids before the test, particularly for tests involving contrast agents. Adequate hydration can help flush the contrast agent out of your system more effectively.
7. Pregnancy and Breastfeeding: If you are pregnant or suspect you might be pregnant, inform your healthcare provider and the imaging facility, as specific imaging tests may not be recommended during pregnancy. Similarly, if you are breastfeeding, discuss the procedure with your healthcare provider to ensure your child

‘s safety.

• Communicating openly with your healthcare provider and the imaging staff is essential to ensure a smooth and safe experience during cardiovascular imaging. Following the recommended preparations and instructions will help ensure the accuracy of the test results and your overall well-being during the procedure.

12. What are the risks of cardiac imaging?

• Like any medical procedure, cardiac imaging techniques come with their own set of potential risks and considerations. The specific risks can vary depending on the type of imaging and the individual patient’s health status. Here are some common risks and concerns associated with cardiac imaging:

1. Radiation Exposure
2. Allergic Reactions
3. Kidney Function
4. Contrast-Induced Nephropathy
5. Allergic Reactions to Medications
6. Invasive Procedures
7. Discomfort and Anxiety
